Embedding Center

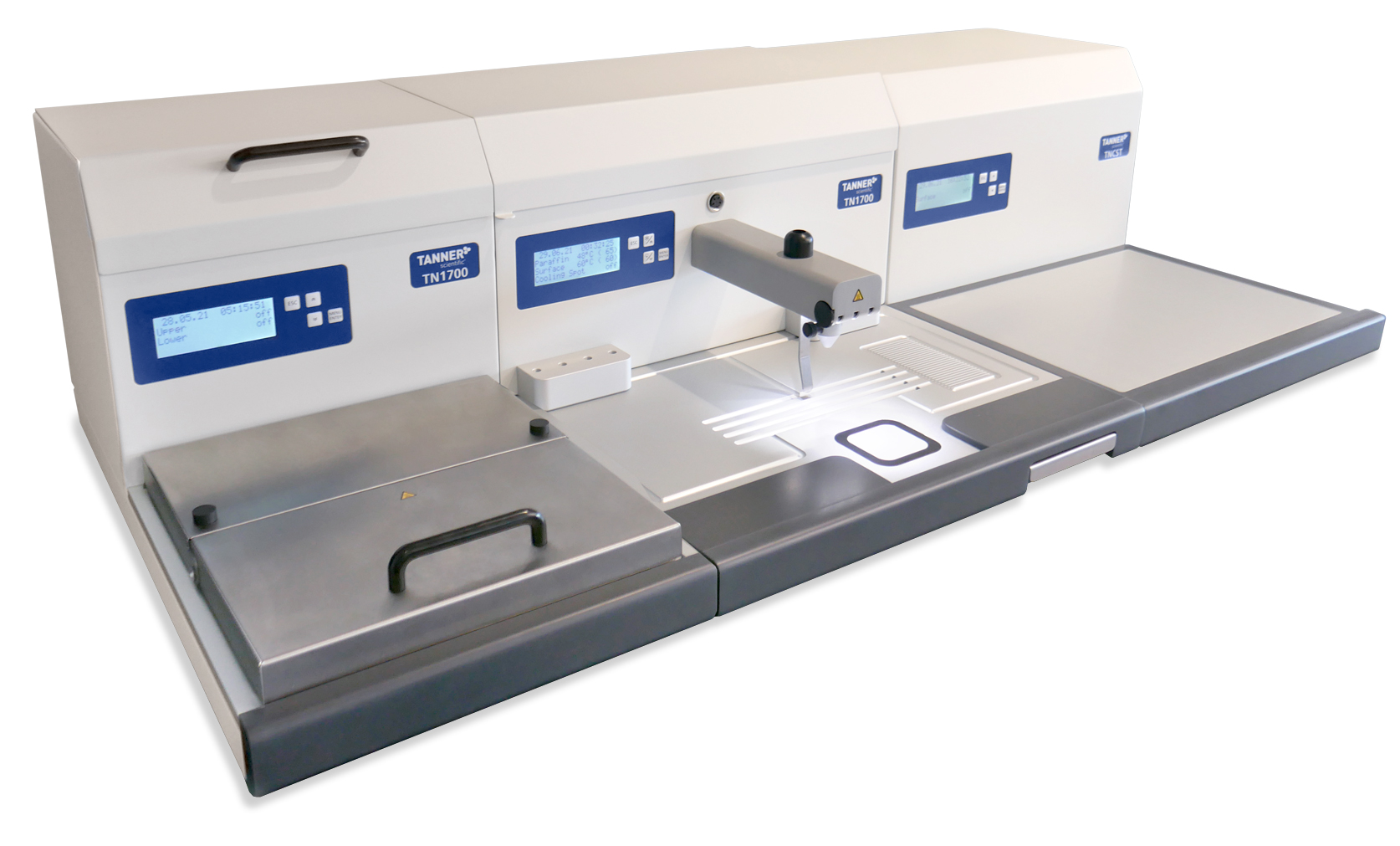

TN1700 Embedding Center

The TN1700 features a spacious working area, large container capacity and best in class reliability. All modules are the same working height and can be arranged anyway you choose. The extendable modular 3-component system with separate temperature control elements consists of a dispenser, a preheating unit and a separate cooling plate.

Item # TN1700A (Dispenser)

  • Dimensions: 17¾"W x 22½"D x 11¾"H
  • Weight: 47 lbs
  • Electrical Parameters: 115 V; 50-60 Hz

Features:

  • Precision German engineering
  • Spacious cooling plate
  • Adjustable magnifier glass
  • Ergonomic hand/arm rest
  • Programmable working hours
  • Adjustable forceps holders
  • 5.5 liter paraffin container
  • Spacious and heated paraffin collection tray
  • Working area with adjustable LED
  • Illumination and integrated cold spot
  • Electrically heated forceps (optional)
  • Integrated heated wax trimmer

TN1700B Cold Plate

Item # TN1700B (Cold Plate)

  • Dimensions: 15¾"W x 22-½"D x 11¾"H
  • Weight: 55 lbs
  • Electrical Parameters: 115 V; 50-60 Hz

TECHNICAL SPECIFICATIONS

  • Temperature Range: min. -15°C (1°C Increments)
  • Max. Capacity: Up to 80 Cassettes
  • Control: Microprocessor, Programming of Temperature, Working Day, Working Time, Time and Date
  • Work Area: 14¾" x 10¾"
  • Temperature: 18 to 35°C, Air Conditioned Room Recommended
  • Humidity: <60%

TN1700C Pre-Warming Unit

The pre-warming unit TN1700C allows for a fast, efficient pre-warming of cassettes and molds as preparation for the embedding process. The mold warmer with lid can be opened completely to ensure an ergonomic workflow throughout the embedding process. The cassette bath offers space for up to 150 standard cassettes. It is removable and easy to clean for paraffin disposal. The TN1700C works independently from the TN1700A for full modularity and flexibility to place the unit wherever needed.

Item # TN1700C (Pre-Warming Unit)

  • Dimensions: 12" x 22½" x 11¾"
  • Weight: 33 lbs
  • Electrical Parameters: 115 V; 50-60 Hz

TECHNICAL SPECIFICATIONS

  • Temperature Range: Up to 80°C (1°C Increments) for Working Area
  • Cassette Bath: Capacity 150 Cassettes, Removable, 10" x 10¼" x 1¼"
  • Control: Microprocessor, Programming of Temperature, Working Day, Working Time, Time and Date
  • Mold Warmer: Capacity 500 Molds, 10¼" x 8¾" x 3"
  • Temperature: 18 to 35°C, Air Conditioned Room Recommended
  • Humidity: <60%
